The Smith & Wesson K-22 Masterpiece is a double action/single action revolver chambered in .22 Long Rifle, built on the medium K frame. Originally introduced in 1946 as the third model K-22, the Masterpiece designation reflected its intended role as a premium target revolver for competitive bullseye shooting and precision practice. The K-22 Masterpiece incorporated a short throw hammer and trigger mechanism engineered for a light, crisp trigger pull, paired with a micrometer click adjustable rear sight and a Patridge front sight to maximize accuracy potential. The revolver uses a five screw frame configuration, with two sideplate screws, one trigger guard screw, one grip screw, and one screw forward of the trigger guard securing the cylinder stop spring. When Smith & Wesson introduced numerical model designations in 1957, the K-22 Masterpiece became the Model 17.

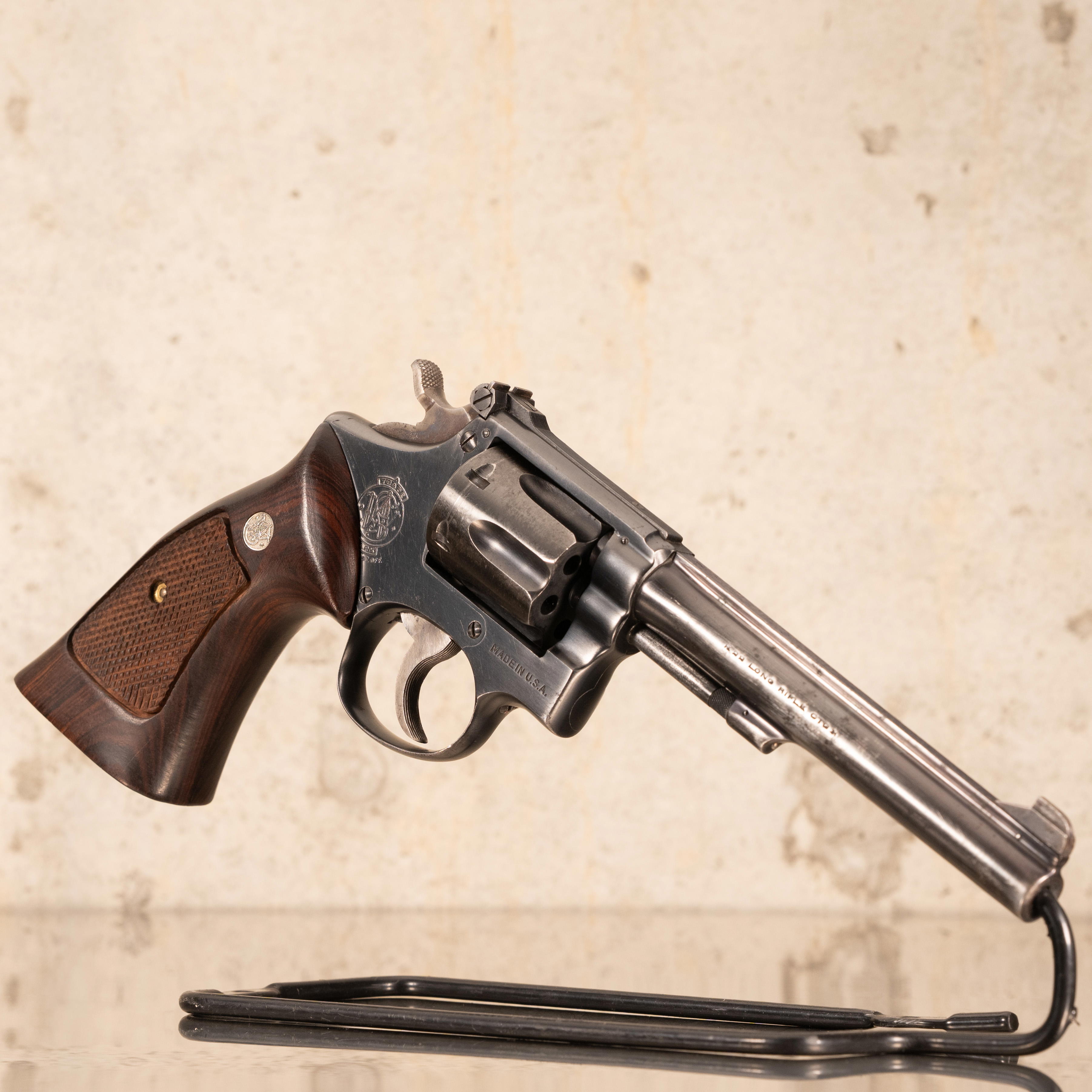

This example is serial number K23090, manufactured in 1948. The revolver features a 6 inch barrel with a blued finish throughout and is fitted with checkered walnut target grips with S&W medallions. No original box or accessories included.

Specifications

• Manufacturer: Smith & Wesson
• Model: K-22 Masterpiece (Pre-Model 17)
• Serial: K23090
• Date of Manufacture: 1948
• Caliber: .22 LR
• Action: Double action/single action
• Barrel: 6 inches
• Frame: K frame, carbon steel, five screw
• Finish: Blued
• Grips: Checkered walnut target grips with S&W medallions
• Sights: Patridge front, micrometer click adjustable rear
• Capacity: 6 rounds
