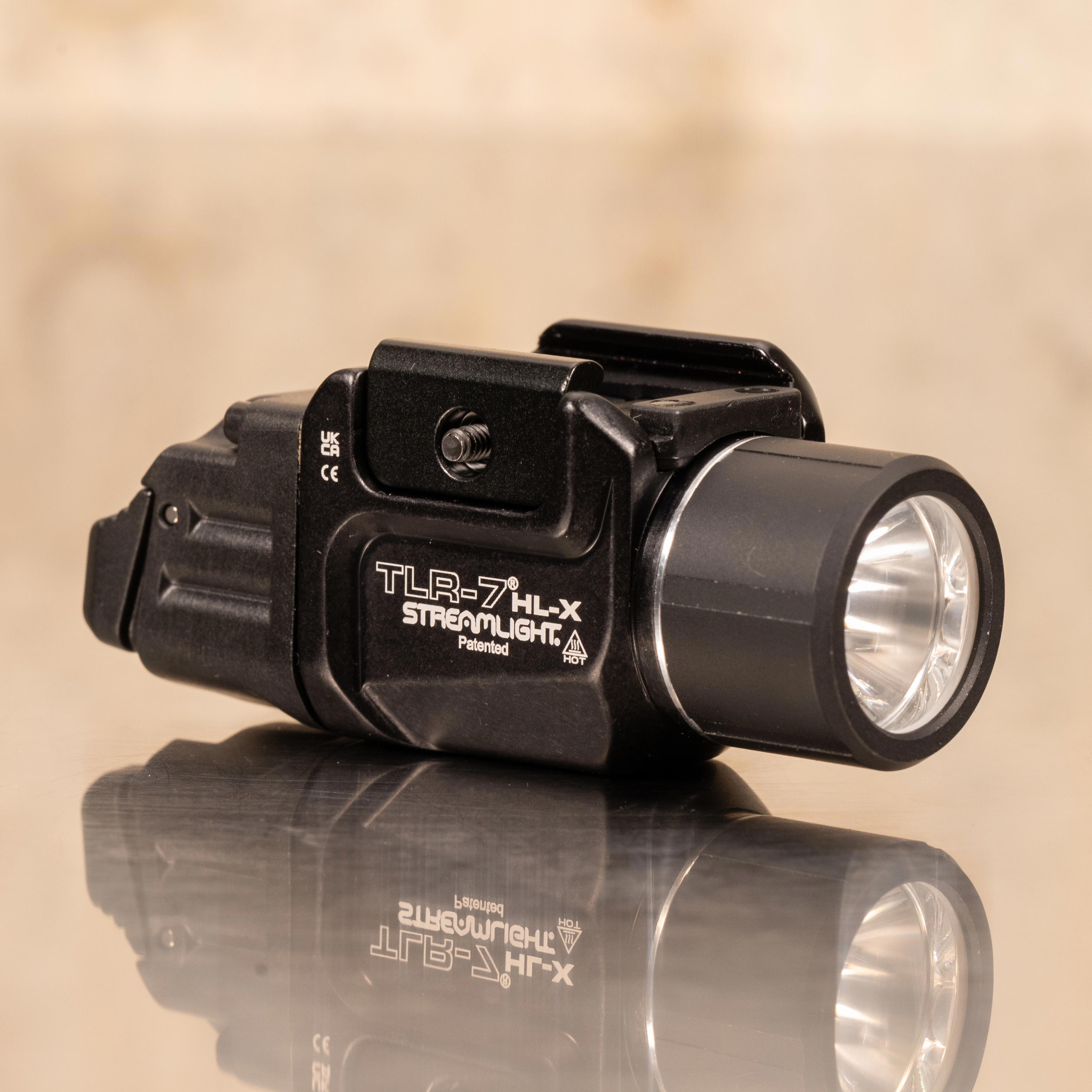

The Streamlight TLR-7 HL-X is a compact, rail mounted weapon light engineered for handguns and subcompact platforms equipped with a Picatinny or proprietary accessory rail. The HL-X designation indicates the high lumen variant within the TLR-7 family, producing 500 lumens of focused white light through a single CR123A lithium battery. The optical system uses a combination of a deep parabolic reflector and an optimized LED emitter to produce a beam pattern with strong center throw and usable peripheral illumination at close to intermediate distances. Activation is managed through rear facing ambidextrous switches that support momentary, constant on, and strobe modes. The housing is constructed from 6000 series aluminum with a hard anodized finish and is sealed to IPX7 standards for submersion resistance.

This example is configured with the 1913 Picatinny rail key for mounting to MIL-STD-1913 accessory rails. No original box or accessories included.

Specifications

• Manufacturer: Streamlight
• Model: TLR-7 HL-X
• Output: 500 lumens
• Runtime: 1.5 hours
• Beam Distance: 140 meters
• Power Source: 1× CR123A lithium battery
• Lens: Borofloat impact resistant glass
• Construction: 6000 series aluminum, hard anodized
• Finish: Black
• Activation: Ambidextrous rear switches (momentary, constant on, strobe)
• Rail Key: 1913 Picatinny
• Water Resistance: IPX7
• Length: 2.76 inches
• Weight: 2.4 oz (without battery)
