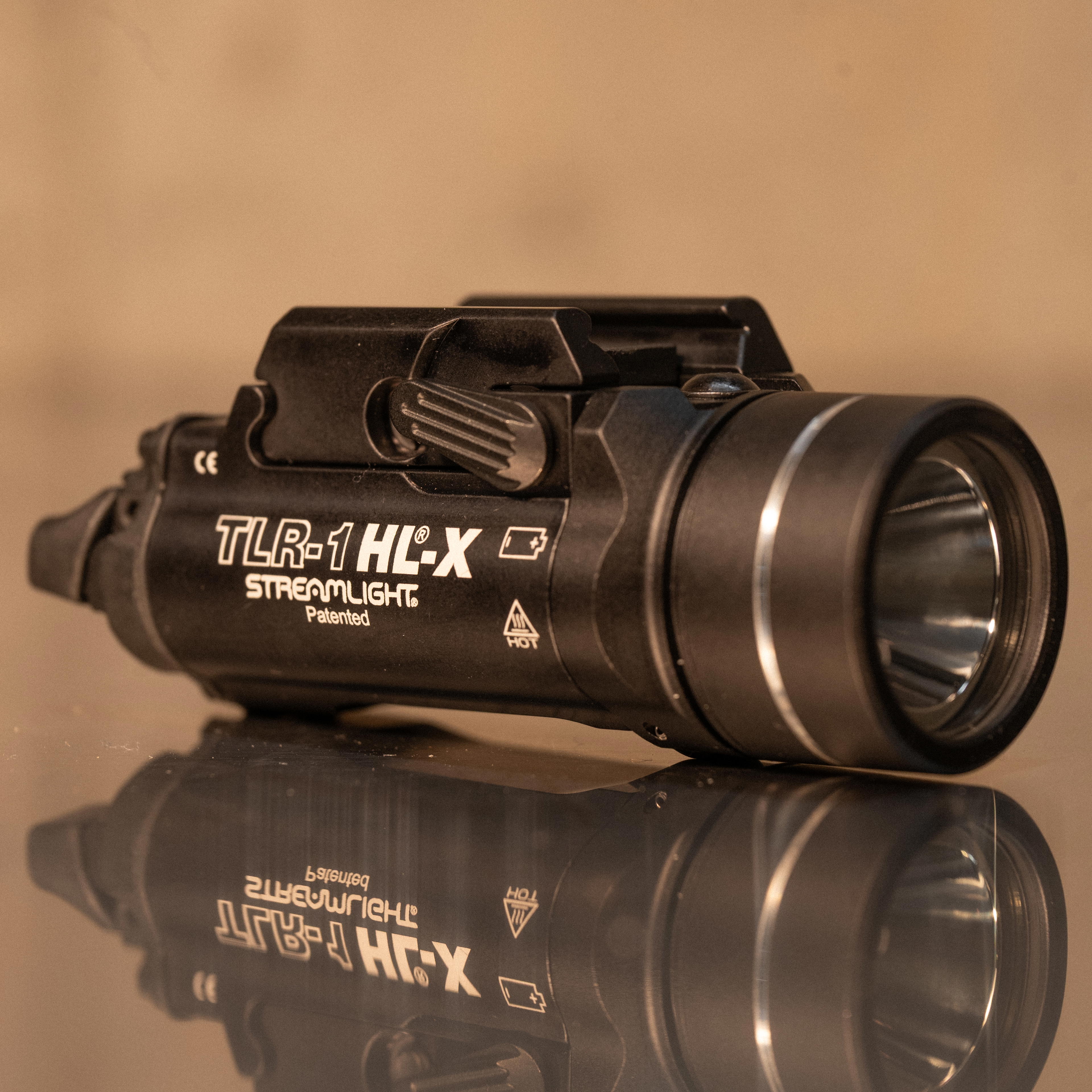

This rail-mounted white light is engineered to offer high-output illumination in a compact and rugged form factor. Designed for compatibility with a wide range of handguns and long guns, it features a front-loading battery compartment that allows battery changes without removing the light from the host weapon. The unit supports both disposable CR123A lithium batteries and Streamlight SL-B9® rechargeable battery packs, offering different output and runtime profiles depending on the power source.

The included configuration supports rapid activation through either of two rear paddle switches: a standard “High” and an “Extended High” option to match user preference. With its aluminum housing and integrated rail clamp, the TLR-1 HL-X mounts securely to most MIL-STD-1913 or Glock-style rails. Included items are the light unit, factory box, rail key set, and both rear switches. Batteries are not included.

Specifications:

• Output: 1,500 lumens (SL-B9), 1,000 lumens (CR123A)

• Beam Distance: 283 meters (SL-B9), 245 meters (CR123A)

• Peak Candela: 20,000 (SL-B9), 15,000 (CR123A)

• Battery Type: (2) SL-B9 Rechargeable Packs or (2) CR123A Lithium (not included)

• Runtime: 1 hour (SL-B9), 1.5 hours (CR123A)

• Length: 3.45 inches (8.76 cm)

• Weight: 4.94 oz (SL-B9) to 5.19 oz (CR123A)

• Color: Black

• Mounting: MIL-STD-1913 or Glock-style rail compatible

• Included: Box, key set, standard and extended paddle switches
