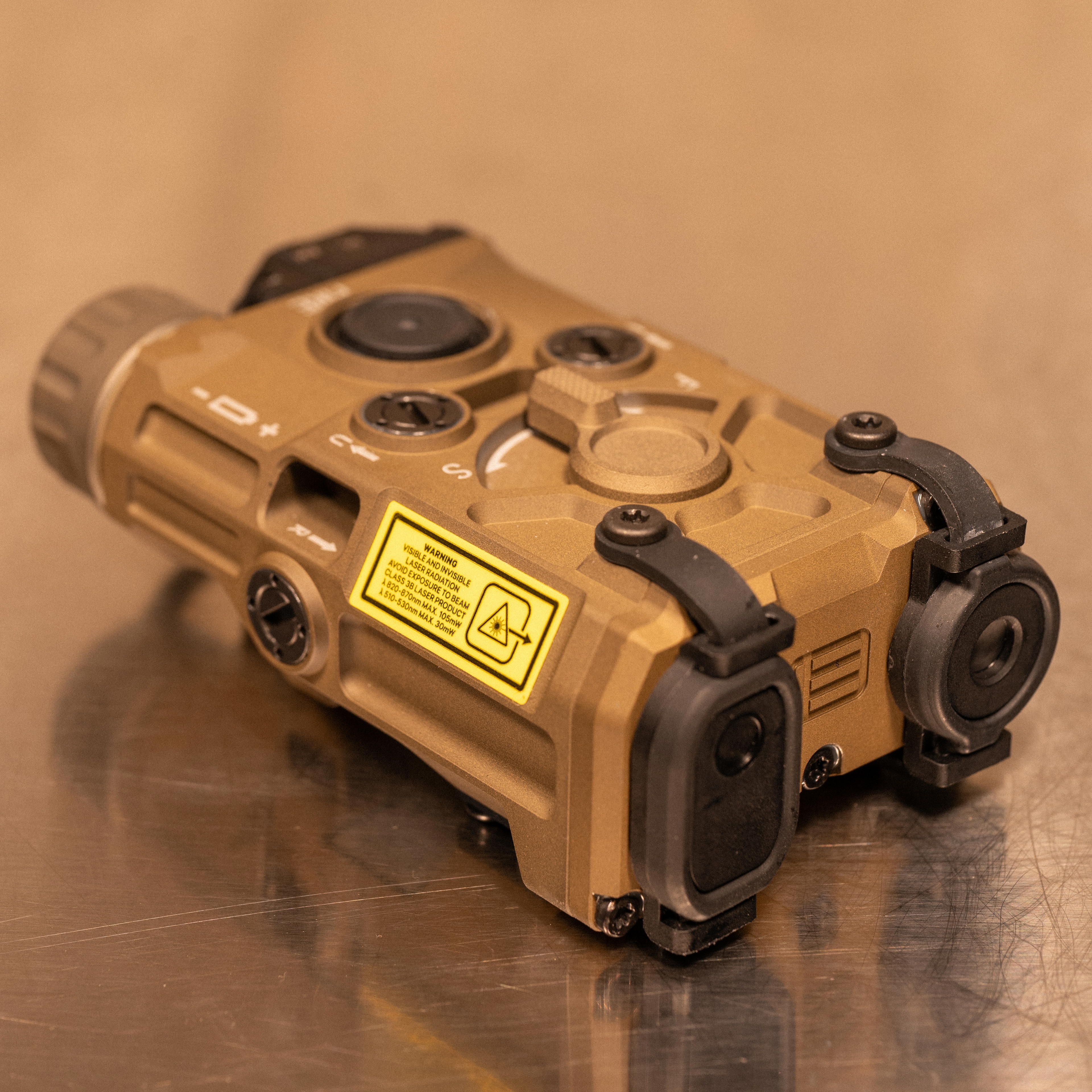

The EOTech OGL (On-Gun Laser) is a compact, full power aiming and illumination module built for professional applications. This unit, finished in Tan, combines a visible green laser, infrared laser, and infrared illuminator into a housing comparable in size to a deck of cards. Both the visible and IR aiming lasers are optically aligned, simplifying zeroing. The infrared illuminator uses a sliding lever to adjust beam divergence from spot to flood, providing versatility for different environments.

The housing is machined aluminum for durability and sealed for environmental protection. Windage and elevation adjustments provide 0.2 mRAD increments with a total of 50 mRAD adjustment range. The unit is powered by a single CR123 battery, offering up to 9 hours of continuous runtime. Control interfaces include an onboard activation switch, a Crane-standard PTT receptacle, and compatibility with the included Modlite ModButton Lite 7-inch switch.

Specifications:

• Manufacturer: EOTech

• Model: OGL (On-Gun Laser), full power

• Color: Tan

• Visible Aim Laser: Green, ≤30 mW max, 520 nm, <0.5 mrad divergence

• IR Aim Laser: ≤35 mW max, 850 nm, <0.5 mrad divergence

• IR Illuminator: ≤90 mW max, 860 nm, ~5 to ~115 mrad variable divergence

• Adjustments: 0.2 mRAD per click, 50 mRAD total range

• Housing Material: Aluminum, sealed

• Power Source: 1x CR123 lithium battery

• Runtime: Up to 9 hours continuous

• Controls: Integrated activation, Crane standard PTT receptacle, Modlite ModButton Lite 7" switch

• Accessories: Tethered protective caps/pattern generators
