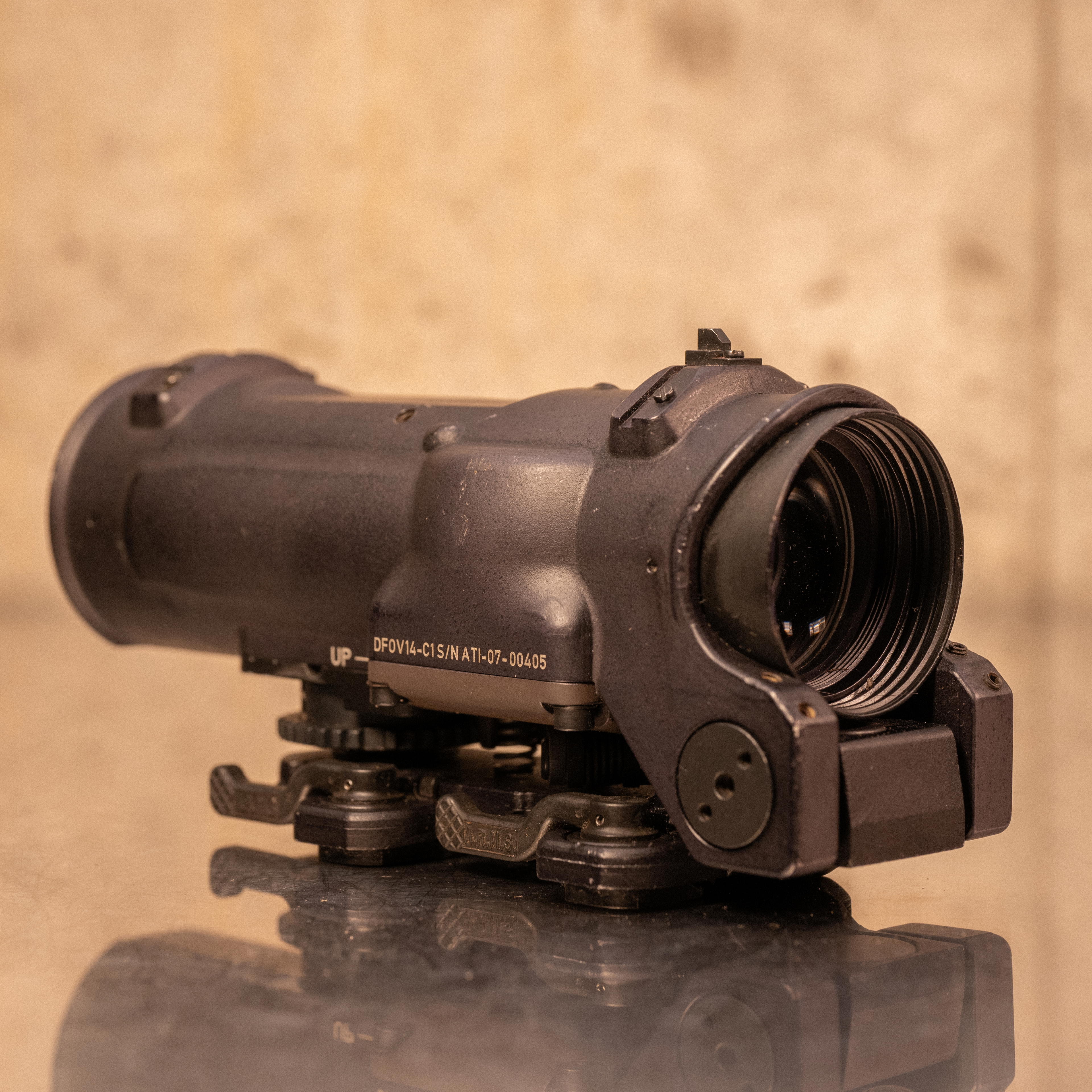

The Elcan SpecterDR 1–4× is a dual-role combat optic offering an immediate mechanical transition between 1× unity and 4× magnification. This 5.56-configured unit uses the CX5395 etched ballistic reticle and a red LED illumination system with five brightness settings powered by a DL1/3N cell. Reticle illumination runtime is model-dependent within the 382–3,000 hour range depending on setting and battery chemistry.

Optics are built on a 56 mm objective and 30 mm-class optical system that provides a wide field of view at 1× for close-quarters work and a tighter field at 4× for precision holds. Optical geometry and controls are oriented for military durability: hard-anodized aluminum housing, sealed construction, fixed parallax (20 m to infinity), and an adjustment system with 0.5 MOA click value and 120 MOA total range. The SpecterDR mounts directly to MIL-STD-1913 Picatinny rails and is rated for waterproof and shock-resistant service. No box or accessories included.

Specifications:

• Manufacturer: Elcan

• Model: SpecterDR 1–4× DFOV14-C1

• Magnification: 1–4× (mechanical selector)

• Objective Diameter: 56 mm

• Reticle: CX5395 (5.56 NATO ballistic reticle), etched, red illumination

• Illumination Type: LED, 5 brightness settings

• Battery: 1 × DL1/3N

• Battery Life: 382–3,000 hours (setting and battery dependent)

• Exit Pupil: 8 mm

• Field of View (linear): 34.2–146.3 ft @100 yd (10.4–48.8 m @100 m)

• Field of View (angle): 6.5°–26°

• Eye Relief: 70 mm

• Weight: 660 g

• Length: 153 mm

• Width: 74 mm

• Height: 78 mm

• Adjustment Click Value: 0.5 MOA

• Adjustment Type/Range: MOA, 120 MOA total

• Finish / Housing: Hard-anodized aluminum

• Environmentals: Waterproof (submersible to 66 ft / 2 hours), shock resistant

• Mount Type / Attachment: Picatinny mounting interface
